IPL Filters for Aesthetic

Specialized for aesthetic treatment application
Durable hard dielectric coating
Deep UV blocking & efficiency heat control
Clear Aperture 100%
Full type IPL Filters, Double-Cut Filters, Light Pipes, Light Guides

Features
Steep transition slope
High transmission pass band to >95%
Custom shapes and sizes
Far superior to absorptive colored glass filters
Unsurpassed performance and reliability
In-house OEM and custom manufacturing solutions

Applications
Medical aesthetic treatment, Hair removal, … etc.
We offer full types of IPL Filters, Double-Cut Filters, Light Pipes and windows used in aesthetic application, please contact us for more information.

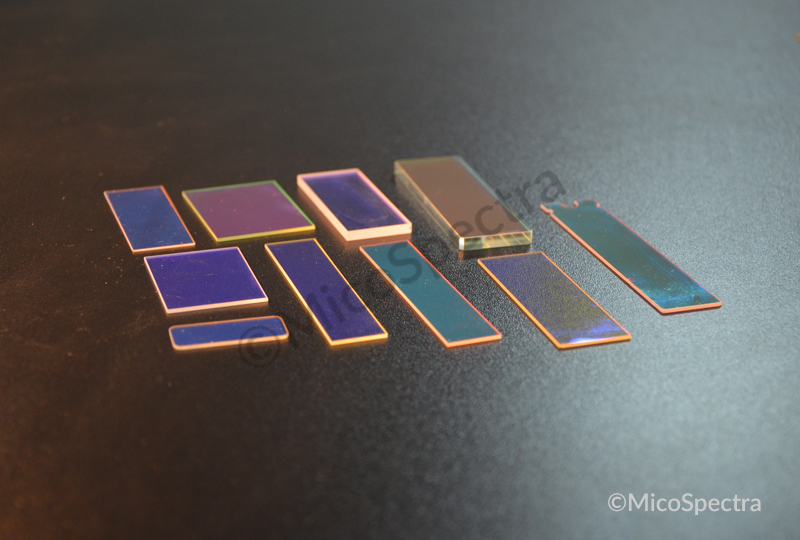

IPL Filters

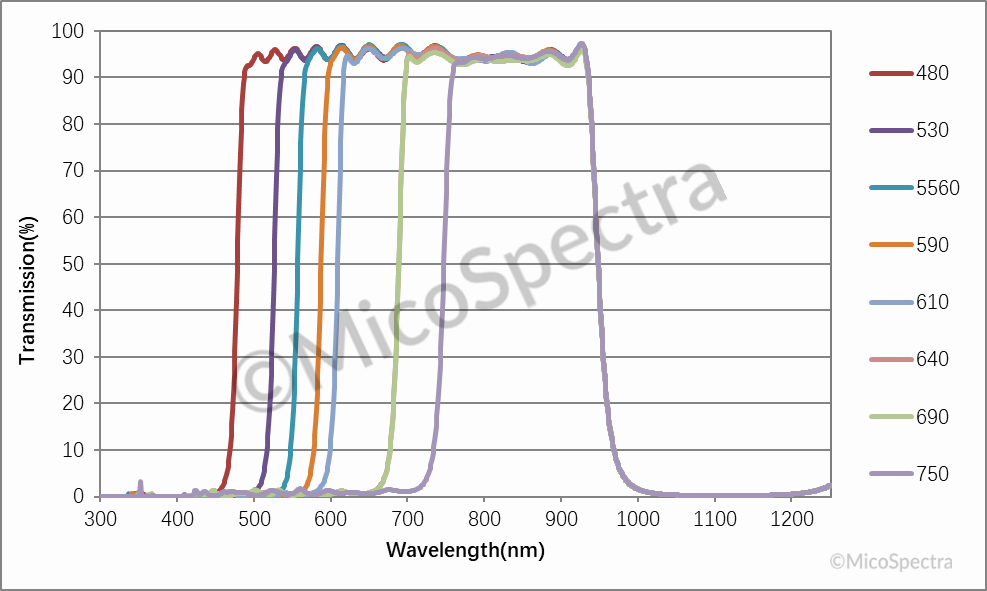

Double-Cut Filters
Light Pipes
Light Guides
Sapphire Light Pipes
Trapezoid Light Pipes
Pyramid Light Pipes
Light Pipes for Diode Laser

Optical material H-K9L, N-BK7, UV Fused Silica, Sapphire, Custom
Size Plate:mm
51x15x0.5
56x15x0.5
68x15x0.5
68x12x1
68x14x1
68x15x1
Cube:mm
40x8x8
40x30x8
40x34x8
40x38x8
40x20x10
40x40x10
50x38x10
50x40x10
50x50x10
60x25x15
Custom size and shape available.
Size tolerance ±0.1mm
Surface quality 40-20 Scratch-Dig

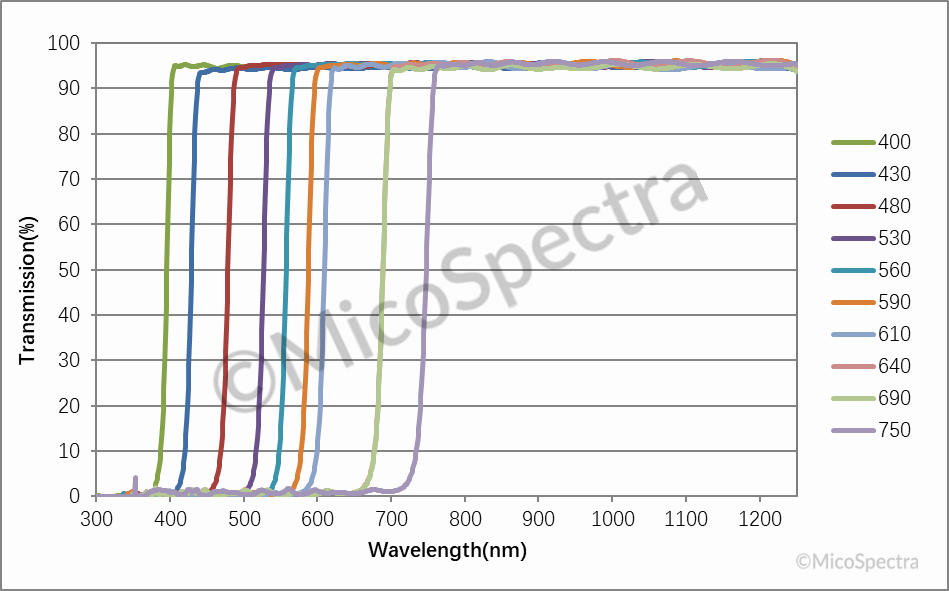

Cut-on wavelength 400nm
430nm
480nm
530nm
560nm
580nm
640nm
690nm
Custom wavelength
Cut-on tolerance <±5nm
Application wavelength range 200nm – 1200nm
Transmission >95%
Reflection >99%
Clear Aperture 100%
Optical material H-K9L, N-BK7, UV Fused Silica, Sapphire, Custom
Size (mm) Custom size and shape available
10x10x2
15x13x2
17x15x3
17x17x3
15x30x2
13x13x60
14-40x87.5x14
12x23x59.5
10x15x80
10x10-12x15-80
Size tolerance ±0.1mm
Surface quality 40-20 Scratch-Dig
Surface flatness < 1/4λ @ 632.8nm
AR coating R<0.2@808nm
Clear Aperture 90%
