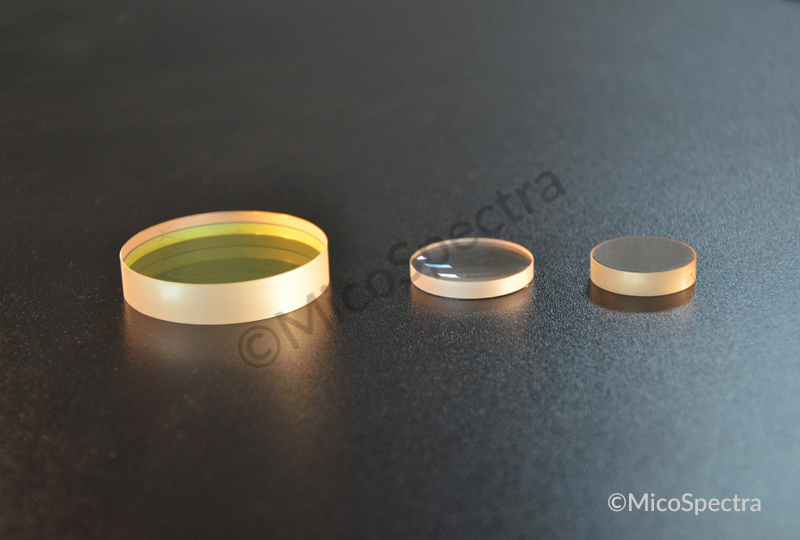

Laser Line Mirrors

High efficiency narrowband reflectivity
Super polished mirror substrates
Ultra hard dielectric coatings
High damage threshold

Features
High reflectance for both S- and P- polarized light
Super-smooth polishing
Exceptional environmental durability, reliability
Minimum thermal and absorption effects
In-house OEM and custom manufacturing solutions

Applications
Nd:YAG, Ar-Ion, Kr-Ion, Solid state lasers, Diode lasers … etc.
Please contact us for more specific applications and markets.

MicoSpectra specializes in the design and manufacture custom optics, thin film coatings and optical assemblies for prototype, research and OEM applications.

Optical material N-BK7, UV Fused Silica, etc.
Size 2mm to 80mm
10mm, 12.7mm, 15mm, 20mm, 25.4mm, 30mm, etc.
Round and rectangular custom size available
Surface quality 10-5 Scratch-Dig
Surface flatness 1/10λ
Surface roughness <2 Å
Wavelength range 266nm – 3000nm

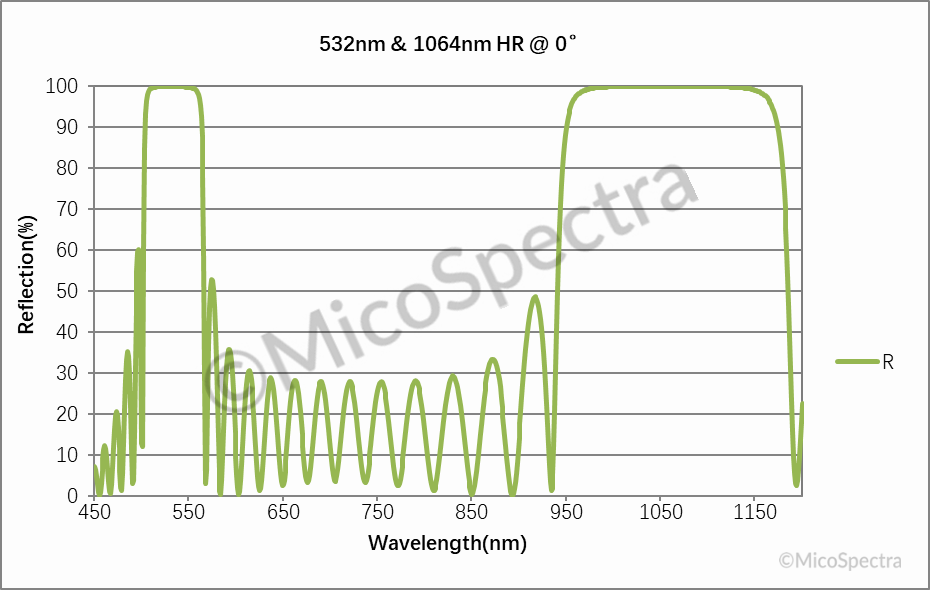

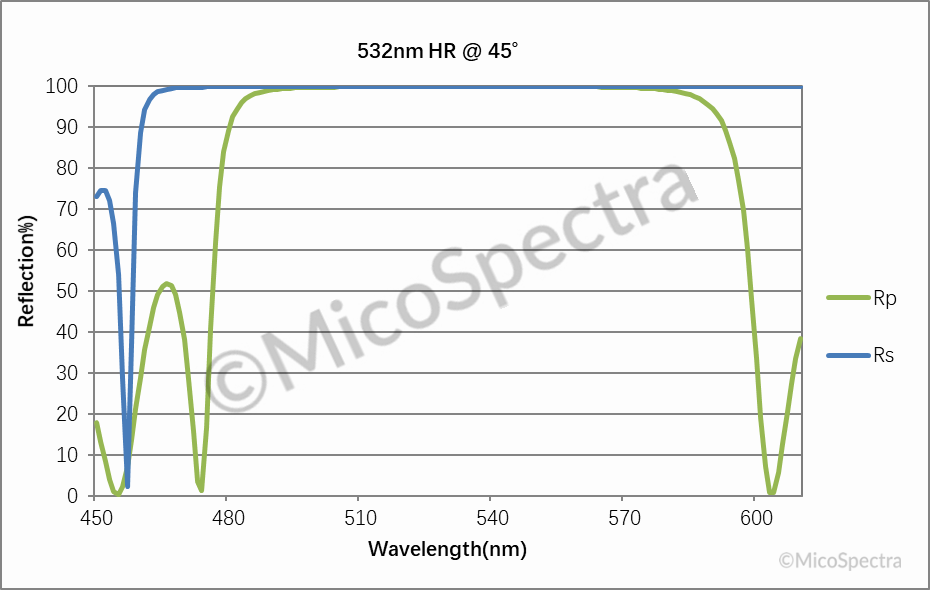

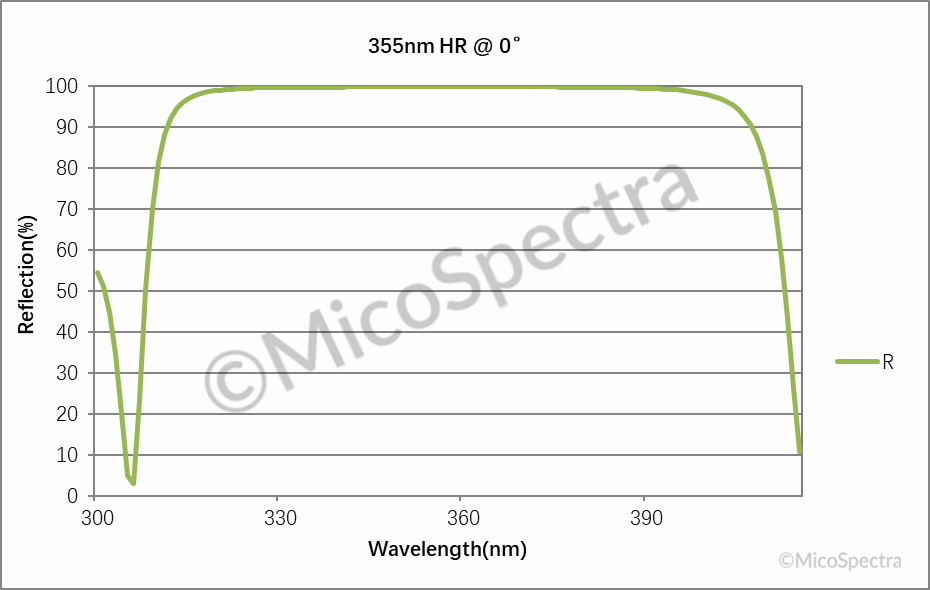

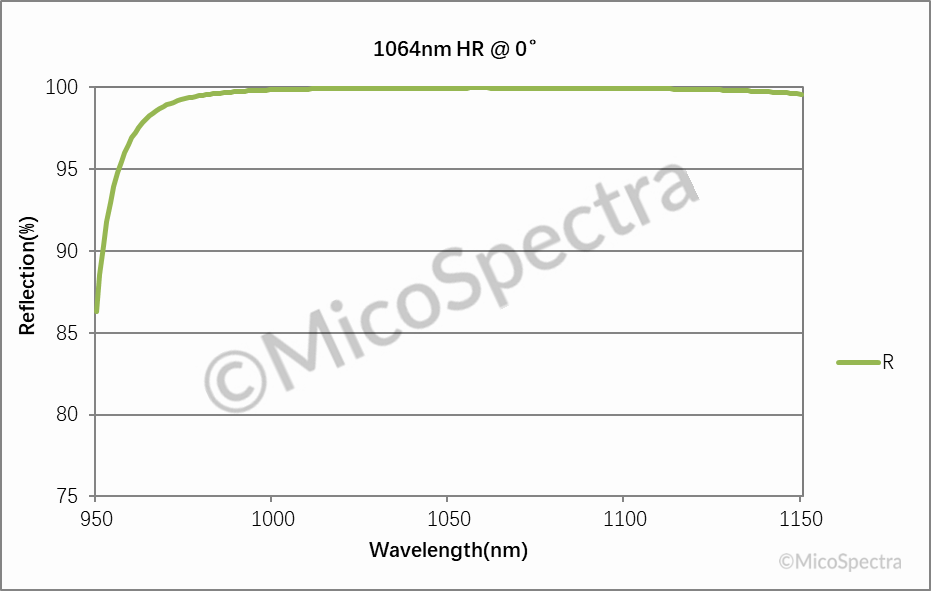

Typical wavelength 266nm, 355nm, 532nm, 1064nm
Single, dual or triple wavelength
Angle of Incidence 0˚ or 45˚
Reflectivity Ravg>99.9%
Damage Threshold 25 J/cm2, 20ns, 20Hz at 1064nm
