Capabilities

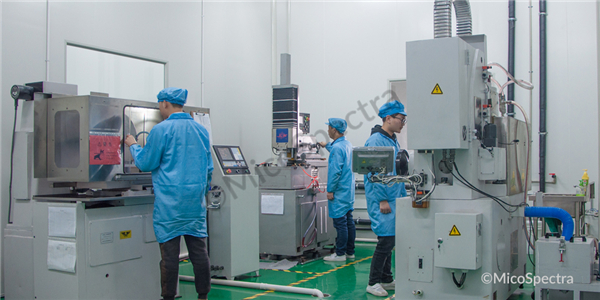

MicoSpectra is located in 30,000 square foot manufacturing facility with a class 10,000 clean room. With more than 20 years of experience in the fabrication of custom optics and coatings, we could offer fast prototyping, small volume and high volume production, with repeatable performance and reliability.

Small Quantity and Rapid Prototyping
Our dedicated rapid prototyping process is designed to provide cost effective small run prototype optical components and coatings in the shortest time possible.

OEM, Custom, & High-Volume Manufacturing
MicoSpectra offers full optical capabilities from initial shaping and polishing to advanced coating and final assembly.

Quality Assurance
We have comprehensive, state-of-the-art technology and skills to ensure all products precisely meet your tolerances and specifications.

Environmental and Durability Testing
MicoSpectra environmental and durability testing refer to a collection of US Military Standard Specifications that are specific to cosmetic, environmental and mechanical testing of optical coatings. Please see references in the table below.

Type of Testing US Military Standard Document
Visual Inspection MIL-PRF-13830
Environmental Testing MIL-STD-810
Durability Testing MIL-C-48497
AR Coatings MIL-C-675C

RoHS Compliant
MicoSpectra is dedicated to environmental care, keeps the highest environmental standards in the full cycle of product design, manufacture and delivery. ALL products of MicoSpectra are RoHS compliant (2011/65/EU).

The SUPER Specs of MicoSpectra Fabrication
Angles accuracy to < 2 arcsec
Thickness to 0.1mm
Dimensions tolerance to ± 0.01mm
Surface quality to 10-5
Surface flatness to < 1/20λ
Surface roughness to < 2Å
Parallelism to < 2 arcsec

State-Of-The-Art Coating Technology
MicoSpectra's advanced in-house optical coating group provides a broad range of coating capabilities on a wide variety of substrates.

Deposition techniques
Ion Beam Sputtering (IBS)
Ion Beam Assisted Deposition (IAD)
Electron Beam Evaporation (E-Beam)

Cleaning
automated ultrasonic clean line

Metrology
UV3600 spectrophotometers from Shimadzu

Benefits of MicoSpectra Coating
Broad range of coating capabilities on a wide variety of substrates
Low-loss, Low scattering, low absorption
Reduced Spectral Shifting
High damage thresholds (pulsed & CW)
Environmental stability
Durability, Environmentally stable

Benefits of MicoSpectra Super-Smooth Polishing
With MicoSpectra's Super-Smooth Polishing technology, our experienced technicians are able to regularly achieve a wavefront error of less than λ/10 and surface roughness less than 2Å.
Low scattering
Low absorption
Enables high strength

Benefits of MicoSpectra Adhesive-Free Optical Contact
Ultra-low loss
Precision Tolerance
High temperature resistance
