Broadband PBS for Display

Based on LCOS, wide band, F#1.5-2.8
Extinction Ratio Tp:Ts>2000:1
Experts in SF57 manufacturing

Features
High Angle AOI
Wide Cone Angle
Durability, Reliability
Super-smooth polishing
Improved gluing interface by advanced bonding processing
In-house OEM and custom manufacturing solutions

Applications
Display, HD Imaging … etc.
Ask us for more specific applications and markets which are using the specialized PBS.

If you are looking for PBS used in Laser, Medical, Analytical and other application, please contact us for detail information.
If you are looking for high power Thin Film Plate Polarizers, please contact us for details of 10000:1 extinction ratio.

Optical material N-SF2, N-SF57, H-ZF52, custom
Cube size 4mm to 80mm
10mm, 12.7mm, 20mm, 25.4mm, 30mm, etc.
Surface quality 40-20 Scratch-Dig
Surface flatness < 1/4λ @ 632.8nm
Beam deviation <3 arc min
Wavelength 420-680nm, custom
Extinction ratio Tp:Ts>1000:1

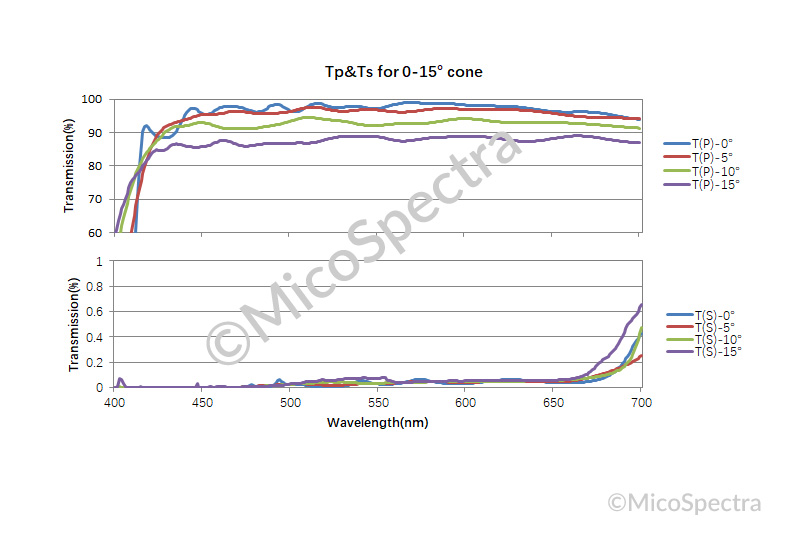

Transmission Tp>95%, Rs>99.5%
AR coating R<0.35% @ 0° AOI
Clear Aperture >90% of central dimension
