High-Power Laser PBS
(Polarizing Cube Beamsplitters)

Optimized for higher-power lasers
Extinction Ratio Tp:Ts>2000:1
High Damage Threshold > 10J/cm²

Features
Durability, Reliability
Super-smooth polishing
Adhesive-free, optical contact
Minimum absorption and scattering losses
In-house OEM and custom manufacturing solutions

Applications
High Energy Nd:YAG Laser … etc.
Ask us for more specific applications and markets which are using the specialized PBS.

If you are looking for PBS used in Display, HD Imaging, Medical, Analytical and other application, please contact us for detail information.
If you are looking for high power Thin Film Plate Polarizers, please contact us for details of 10000:1 extinction ratio.

Optical material UV Fused Silica, etc.
Cube size 4mm to 80mm
10mm, 12.7mm, 20mm, 25.4mm, 30mm, etc.
Surface quality 10-5 Scratch-Dig
Surface flatness < 1/4λ @ 632.8nm
Beam deviation <3 arc min

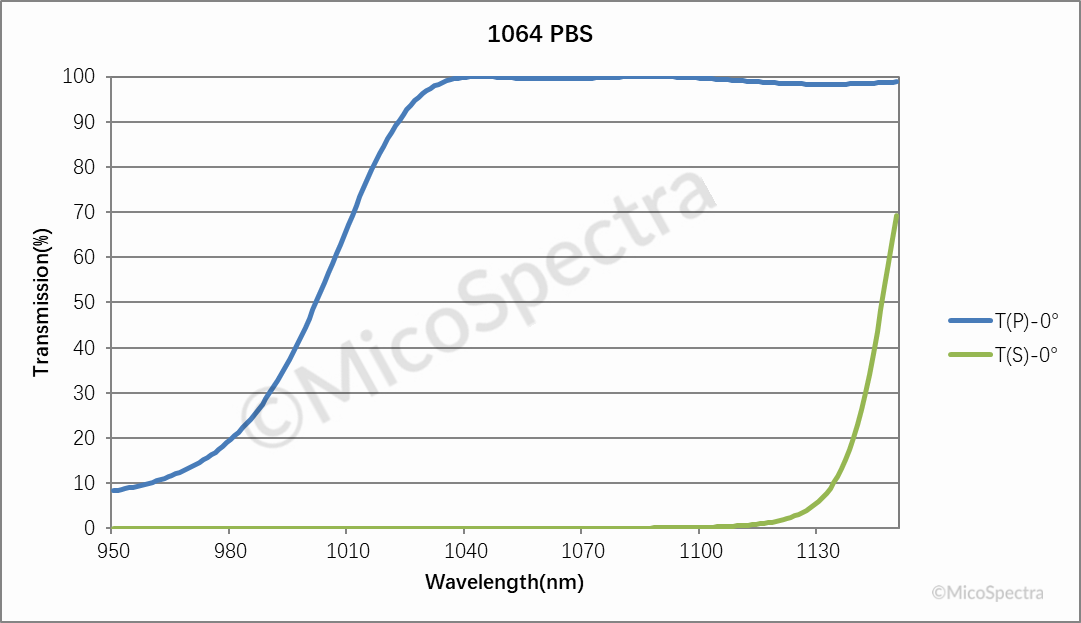

Wavelength 1064nm
Extinction ratio Tp:Ts>2000:1
Transmission Tp>95%, Rs>99.5%
AR coating R<0.25% @ 0° AOI
Clear Aperture >90% of central dimension
Damage Threshold 10 J/cm2 with 10 nsec pulses
Optional wavelength* UV
266nm, 355nm, 405nm, custom
Laser line

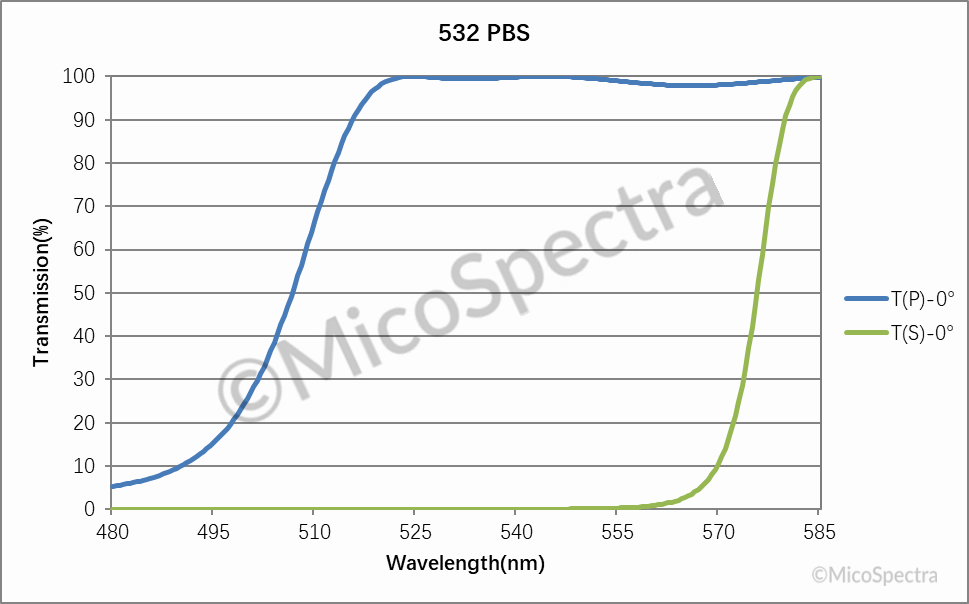

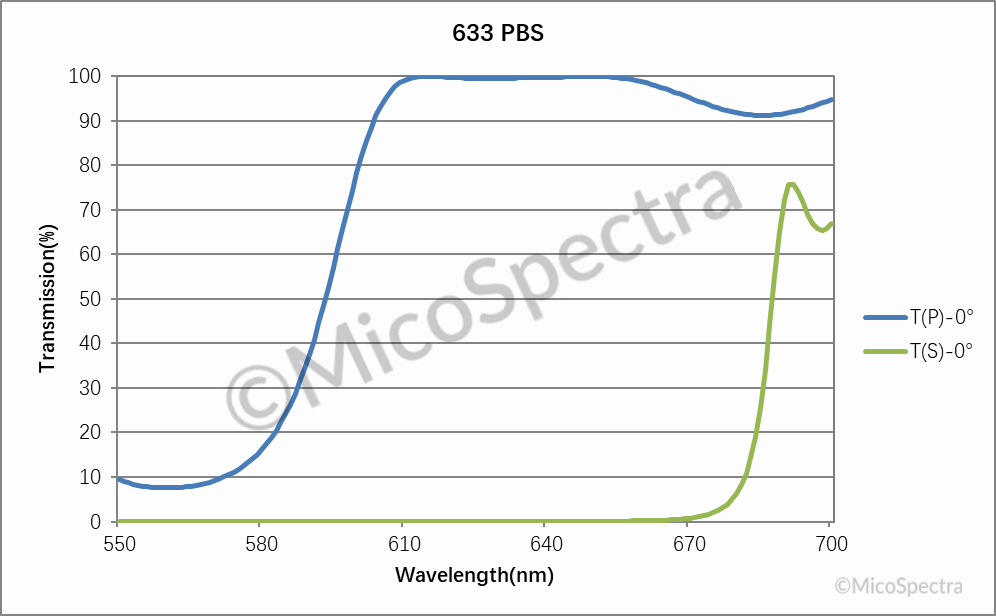

532nm, 633nm, 780nm, 830nm, 980nm, 1064nm, 1310nm, 1550nm, custom
Broadband
420-680nm, 620-1000nm, 900-1300nm, 1200-1600nm, custom
Optional extinction ratio* Tp:Ts>200:1
Tp:Ts>500:1
Tp:Ts>1000:1
Tp:Ts>2000:1
Tp:Ts>5000:1

*For the optional needs, please contact us for details.
