NPBS (Non-Polarizing Cube Beamsplitters)

10:90, 30:70, 50:50, or Custom Split Ratio
Negligible absorption, hybrid coaitng
S- and p-polarized matched to <5%

Features
Custom broadband and single band available
Super-smooth polishing
Minimum absorption and scattering losses
Durability, Reliability
In-house OEM and custom manufacturing solutions

Applications
Laser … etc.
Ask us for more specific applications and markets which are using the specialized NPBS.

If you are looking for NPBS used in Display, HD Imaging, Medical, Analytical and other application, please contact us for detail information.
Non-Polarizing Plate Beamsplitters designed for 45° AOI with all dielectric coating s- and p- polarized matched within 3%, please contact us for detail information.

Optical material N-BK7, Custom
Cube size 4mm to 80mm
10mm, 12.7mm, 15mm, 20mm, 25.4mm, 30mm, etc.
Surface quality 40-20 Scratch-Dig
Surface flatness < 1/4λ @ 632.8nm
Beam deviation <3 arc min
Wavelength Laser line
355nm, 405nm, 532nm, 633nm, 780nm, 830nm, 980nm, 1064nm, 1310nm, 1550nm, custom
Broadband

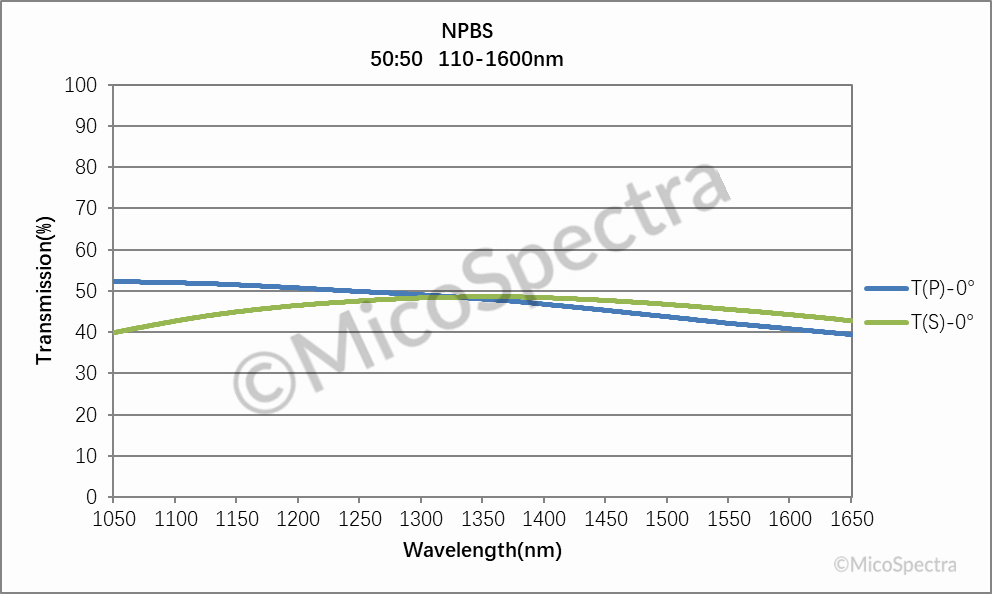

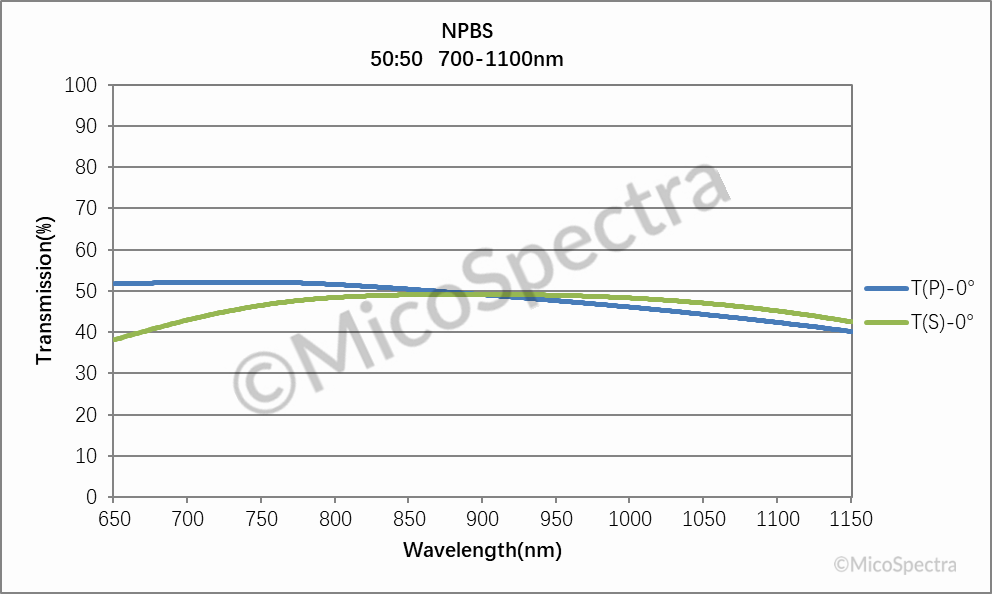

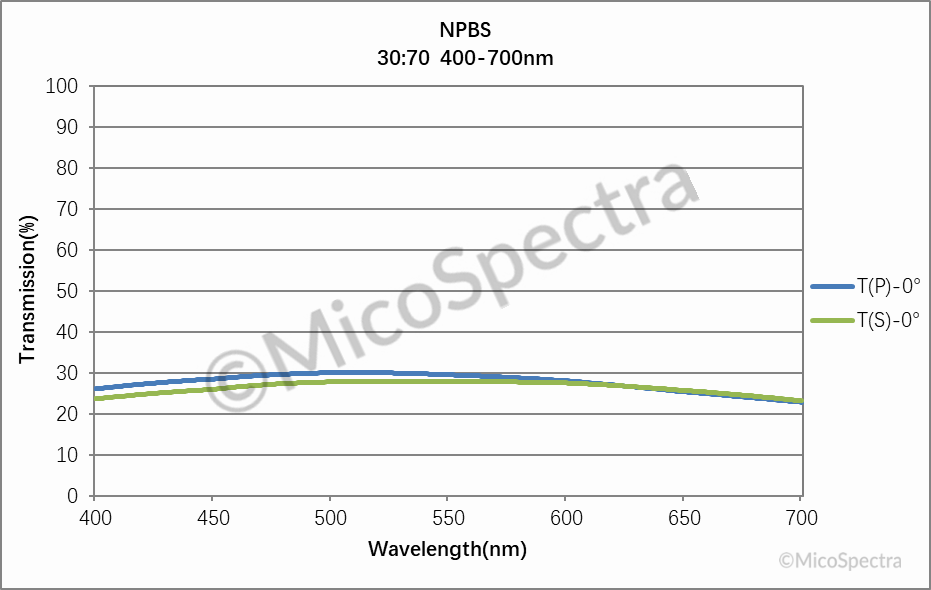

400-700nm, 700-1100nm, 1100-1600nm, custom
Split ratio 10:90, 30:70, 50:50, 70:30, 90:10 or Custom R:T
Polarization |Rs-Rp|<5%
AR coating R<0.25% @ 0° AOI
Clear Aperture >90% of central dimension
