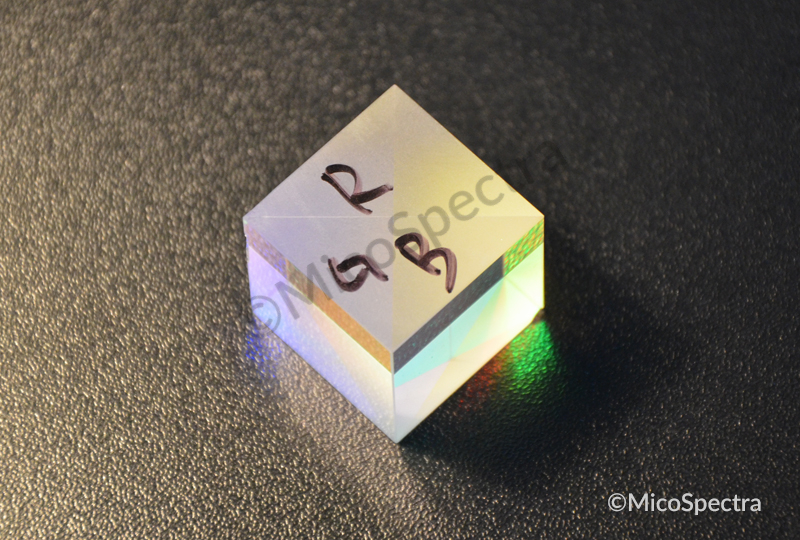

X-Cube for Display (Dichroic Cubes)

Based on LCOS
Non-Polarizing S+P type
High performance polarization management coatings

Features
White Balanced
Specialized in custom light solutions
High contrast 1000:1
Experts in prisms manufacturing and bonding
In-house OEM and custom manufacturing solutions

Applications
Display, HD Imaging … etc.
Ask us for more specific applications and markets which are using the specialized X-Cube.

If you are looking for X-Cube used in Laser, Medical, Analytical and other application, please contact us for detail information.
To get same performance by using MicoSpectra’s plate Dichroic Filters, please contact us for details.
Light Managing Module/Assemblies by PBS and X-Cube, Dichroic, Waveplate, ask us for more information.

Optical material N-BK7, custom
Cube size 4mm to 50mm
10mm, 15mm, 20mm, etc.
Surface quality 40-20 Scratch-Dig
Center gap < 20 µm
Pyramidal error <2 arc min
Coating S-P-S type, S-S-S type, S+P type

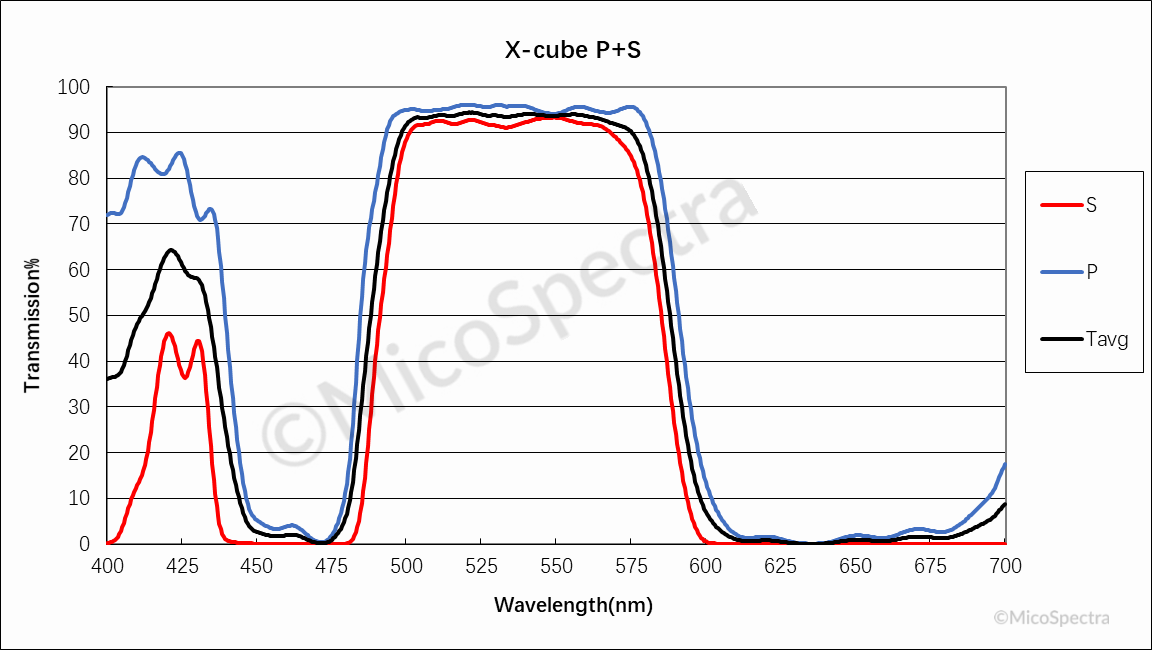

Transmission R>98% R&B light, T>94% G light
AR coating R<0.35% @ 0° AOI
