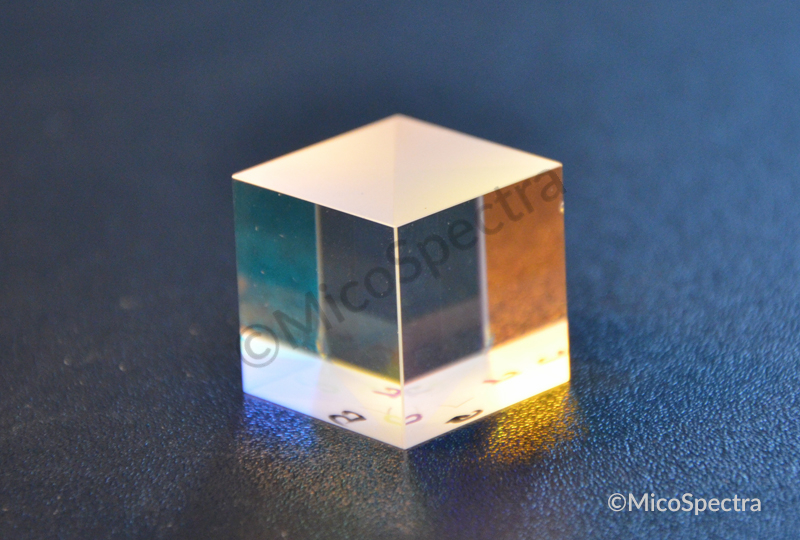

Beamsplitters

At MicoSpectra, we specializes in high performance polarization management coatings, and we are adept at super high precision prisms and flat processing as well as gluing and optical bonding.

Broadband PBS for Display
  • Based on LCOS, wide band, F#1.5-2.8
  • Extinction Ratio Tp:Ts>2000:1
  • Experts in SF57 manufacturing
X-Cube for Display
  • Based on LCOS, F#2.4 Cone Angle
  • Non-Polarizing S+P type
  • High performance polarization management coatings
PBS+Waveplate For Display
  • Specialized in Custom design
  • Gluing Surface flatness to <0.02mm
  • Durable, repeatable, reliable
High-Power Laser PBS (Polarizing Cube Beamsplitters)
  • Optimized for higher-power lasers
  • Extinction Ratio Tp:Ts>2000:1
  • High Damage Threshold > 10J/cm²

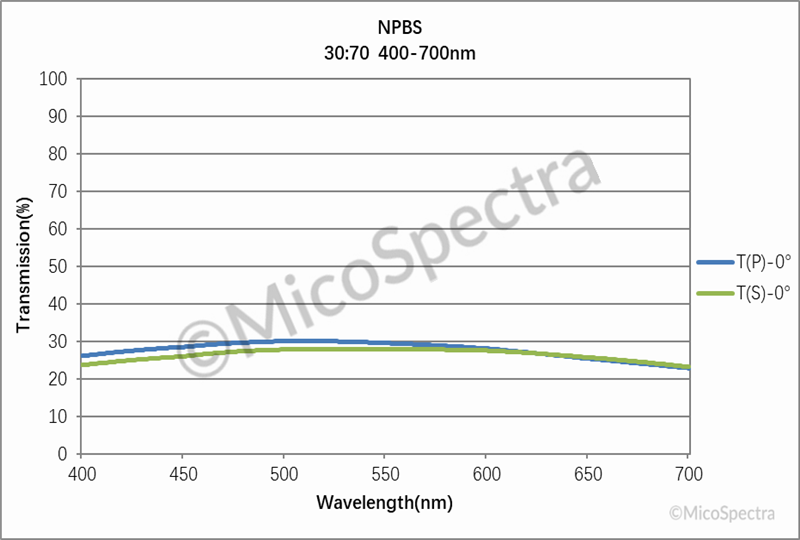

NPBS (Non-Polarizing Cube Beamsplitters)
  • 10:90, 30:70, 50:50, or Custom Split Ratio
  • Negligible absorption, hybrid coating
  • S- and p-polarized matched to <5%

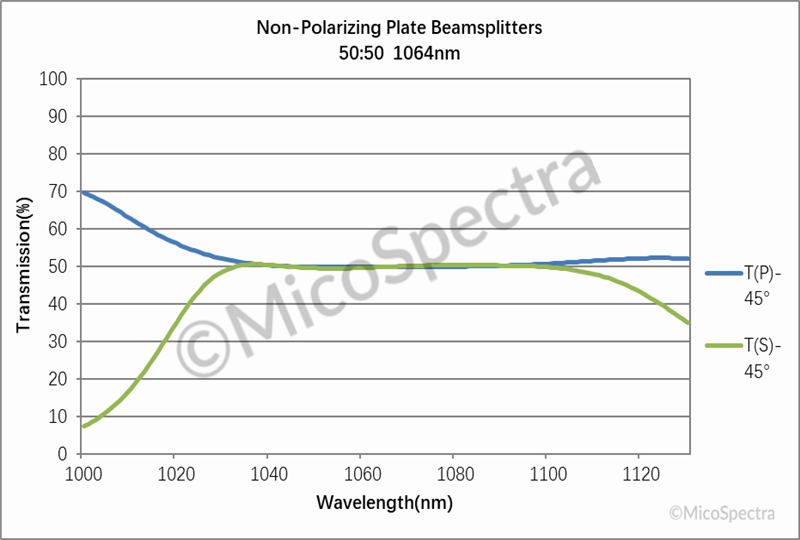

Non-Polarizing Plate Beamsplitters
  • Designed for 45° angle of incidence with random polarization
  • Negligible absorption, all dielectric coating
  • S- and p-polarized matched to <5%

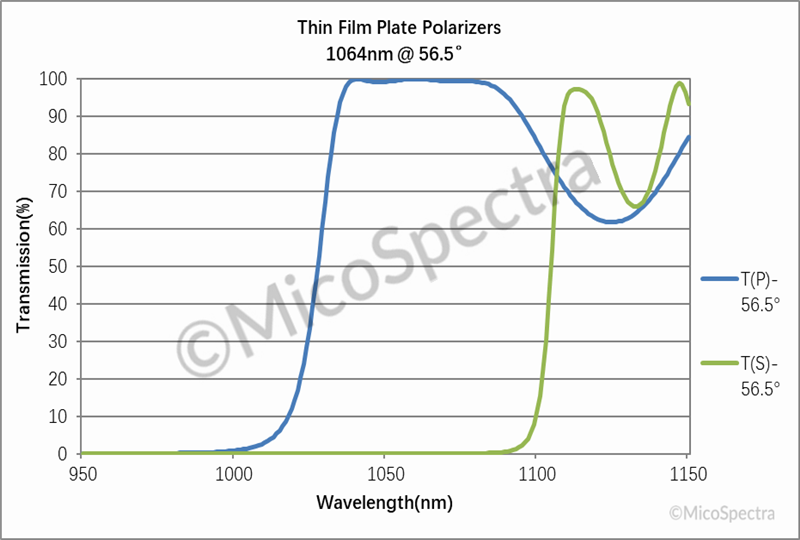

Thin Film Plate Polarizers
  • Optimized for higher-power lasers
  • Extinction Ratio Tp:Ts>10000:1
  • High Damage Threshold > 10J/cm²
