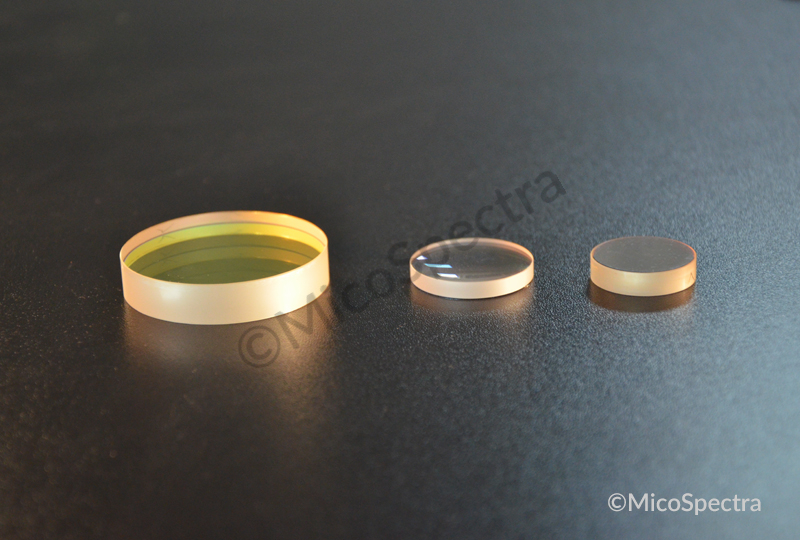

Broadband Dielectric Mirrors
High efficiency broadband reflectivity
Ultra hard dielectric coatings
Durable, easy to clean
High damage threshold
Features
High reflectance for both S- and P- polarized light
Super polished mirror substrates
Super-smooth polishing
Exceptional environmental durability, reliability
Minimum thermal and absorption effects
In-house OEM and custom manufacturing solutions
Applications
CW and Nanosecond Lasers ... etc.
Please contact us for more specific applications and markets.
MicoSpectra specializes in the design and manufacture custom optics, thin film coatings and optical assemblies for prototype, research and OEM applications.
| Optical material | N-BK7, UV Fused Silica, etc. |
| Size | 2mm to 80mm 10mm, 12.7mm, 15mm, 20mm, 25.4mm, 30mm, etc. Round and rectangular custom size available |
| Surface quality | 10-5 Scratch-Dig |
| Surface flatness | 1/10λ |
| Surface roughness | <2 Å |
| Wavelength range | 266nm – 3000nm |
| Typical wavelength | 350-400nm, 400-750nm, 750-1100nm, 1300-1600nm |
| Angle of Incidence | 0˚ to 45˚ |
| Reflectivity | Ravg > 99% for S- and P- Polarization for AOI from 0 to 45° |
| Damage Threshold | 10 kW/cm |
