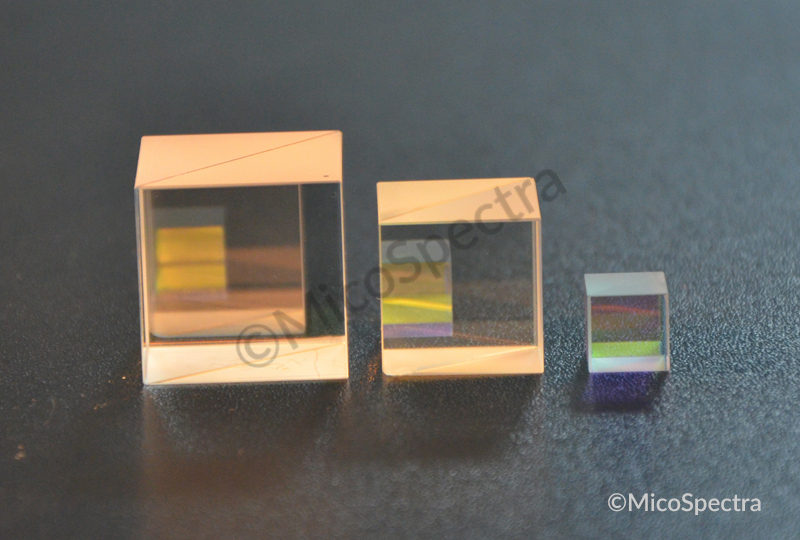

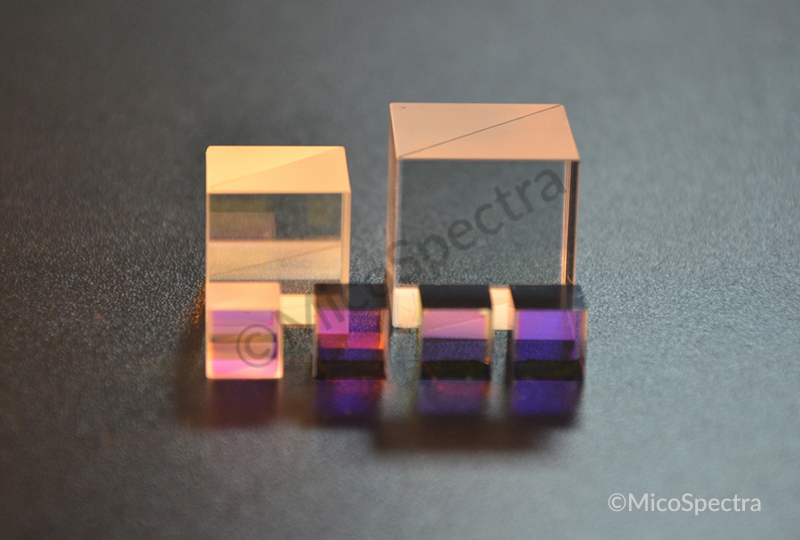

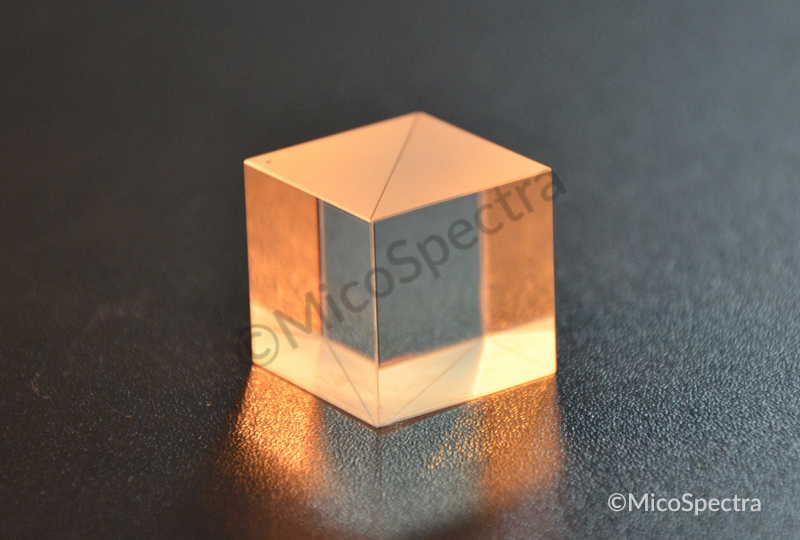

Broadband PBS for Display
Based on LCOS, wide band, F#1.5-2.8
Extinction Ratio Tp:Ts>2000:1
Experts in SF57 manufacturing
Features
High Angle AOI
Wide Cone Angle
Durability, Reliability
Super-smooth polishing
Improved gluing interface by advanced bonding processing
In-house OEM and custom manufacturing solutions
Applications
Display, HD Imaging … etc.
Ask us for more specific applications and markets which are using the specialized PBS.
If you are looking for PBS used in Laser, Medical, Analytical and other application, please contact us for detail information.
If you are looking for high power Thin Film Plate Polarizers, please contact us for details of 10000:1 extinction ratio.
| Optical material | N-SF2, N-SF57, H-ZF52, custom |
| Cube size | 4mm to 80mm 10mm, 12.7mm, 20mm, 25.4mm, 30mm, etc. |
| Surface quality | 40-20 Scratch-Dig |
| Surface flatness | < 1/4λ @ 632.8nm |
| Beam deviation | <3 arc min |
| Wavelength | 420-680nm, custom |

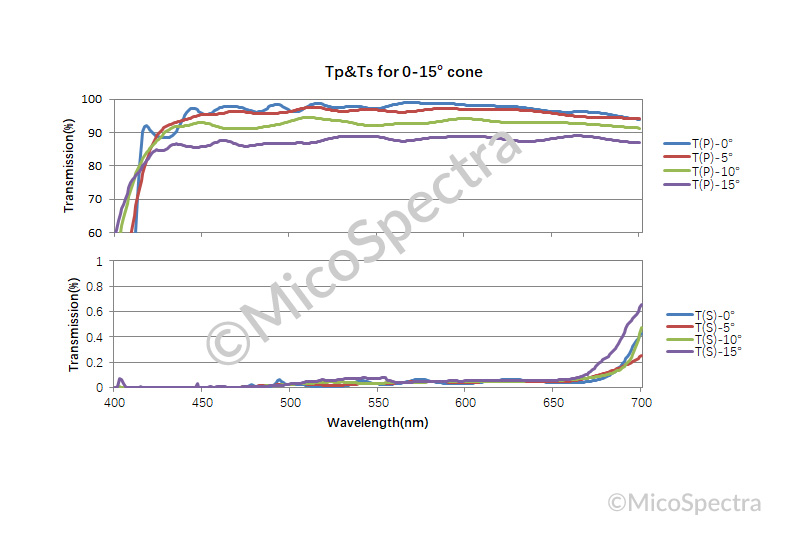

| Extinction ratio | Tp:Ts>1000:1 |
| Transmission | Tp>95%, Rs>99.5% |
| AR coating | R<0.35% @ 0° AOI |
| Clear Aperture | >90% of central dimension |
