Thin Film Plate Polarizers
Optimized for higher-power lasers
Extinction Ratio Tp:Ts>10000:1
High Damage Threshold > 10J/cm²
Features
Durability, Reliability
Super-smooth polishing
Minimum absorption and scattering losses
In-house OEM and custom manufacturing solutions
Applications
High Energy Nd:YAG Laser … etc.
Please contact us for more specific applications and markets.
If you are looking for high power PBS, Polarizing Cube Beamsplitters, please contact us for details.
| Optical material | UV Fused Silica, etc. |
| Size | 2mm to 80mm 10mm, 12.7mm, 15mm, 20mm, 25.4mm, 30mm, etc. Round and rectangular custom size available |
| Surface quality | 20-10 Scratch-Dig |
| Surface flatness | < 1/4λ @ 632.8nm |
| Parallelism | 30 arc sec |

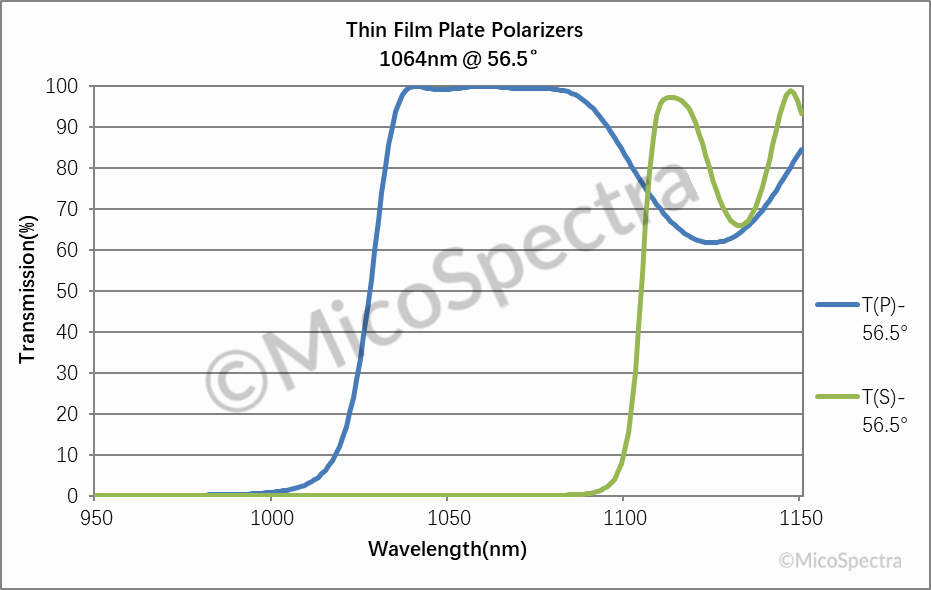

| Wavelength | 1064nm, 532nm, custom wavelength |
| Clear Aperture | >90% of central dimension |
| Damage Threshold | 10 J/cm2 with 10 nsec pulses |
| Optional wavelength* | UV 266nm, 355nm, 405nm, custom Laser line 532nm, 633nm, 780nm, 830nm, 980nm, 1064nm, 1310nm, 1550nm, custom |
| Optional extinction ratio* | Tp:Ts>200:1 Tp:Ts>500:1 Tp:Ts>1000:1 Tp:Ts>2000:1 Tp:Ts>5000:1 Tp:Ts>10000:1 |
*For the optional needs, please contact us for details.
