Laser Line Mirrors
High efficiency narrowband reflectivity
Super polished mirror substrates
Ultra hard dielectric coatings
High damage threshold
Features
High reflectance for both S- and P- polarized light
Super-smooth polishing
Exceptional environmental durability, reliability
Minimum thermal and absorption effects
In-house OEM and custom manufacturing solutions
Applications
Nd:YAG, Ar-Ion, Kr-Ion, Solid state lasers, Diode lasers … etc.
Please contact us for more specific applications and markets.
MicoSpectra specializes in the design and manufacture custom optics, thin film coatings and optical assemblies for prototype, research and OEM applications.
| Optical material | N-BK7, UV Fused Silica, etc. |
| Size | 2mm to 80mm 10mm, 12.7mm, 15mm, 20mm, 25.4mm, 30mm, etc. Round and rectangular custom size available |
| Surface quality | 10-5 Scratch-Dig |
| Surface flatness | 1/10λ |
| Surface roughness | <2 Å |
| Wavelength range | 266nm – 3000nm |
| Typical wavelength | 266nm, 355nm, 532nm, 1064nm Single, dual or triple wavelength |
| Angle of Incidence | 0˚ or 45˚ |

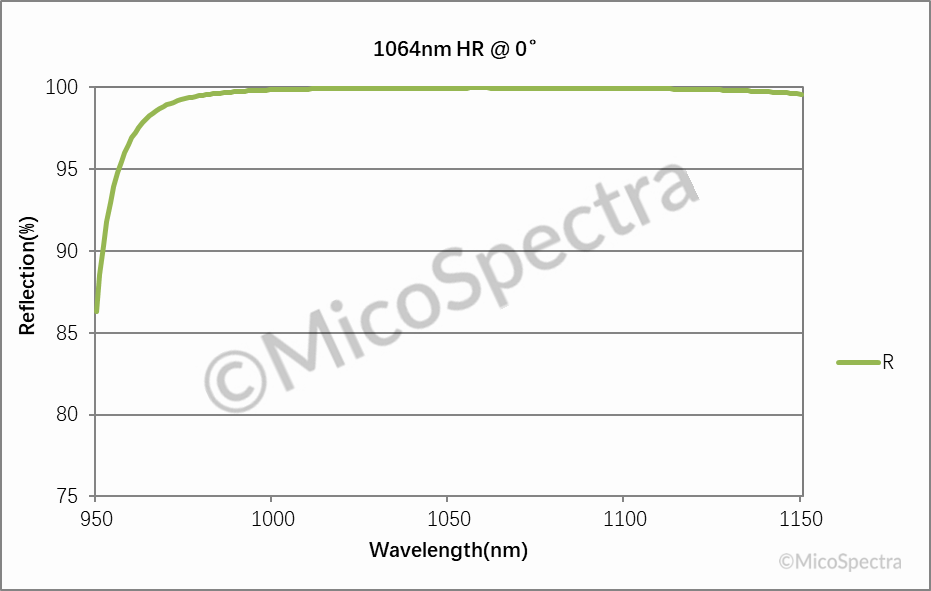

| Reflectivity | Ravg>99.9% |
| Damage Threshold | 25 J/cm2, 20ns, 20Hz at 1064nm |
