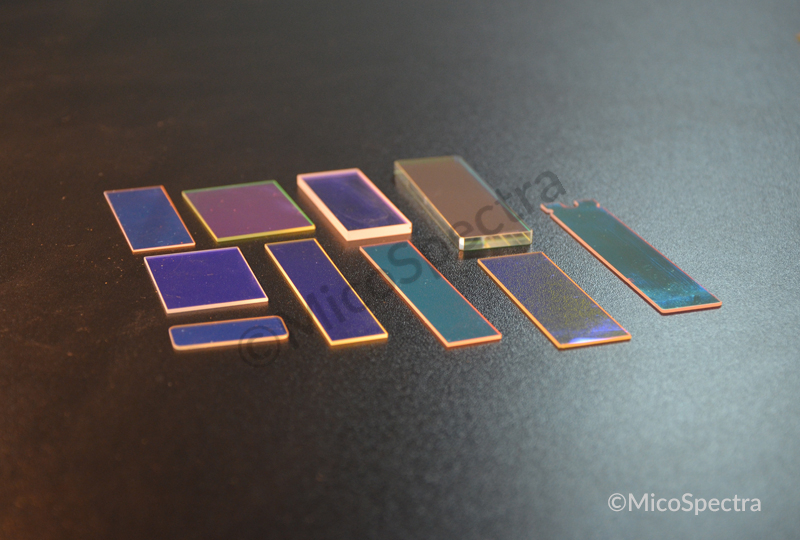

IPL Filters for Aesthetic
Specialized for aesthetic treatment application
Durable hard dielectric coating
Deep UV blocking & efficiency heat control
Clear Aperture 100%
Full type IPL Filters, Double-Cut Filters, Light Pipes, Light Guides
Features
Steep transition slope
High transmission pass band to >95%
Custom shapes and sizes
Far superior to absorptive colored glass filters
Unsurpassed performance and reliability
In-house OEM and custom manufacturing solutions
Applications
Medical aesthetic treatment, Hair removal, … etc.
We offer full types of IPL Filters, Double-Cut Filters, Light Pipes and windows used in aesthetic application, please contact us for more information.
IPL Filters
Double-Cut Filters
Light Pipes
Light Guides
Sapphire Light Pipes
Trapezoid Light Pipes
Pyramid Light Pipes
Light Pipes for Diode Laser
| Optical material | H-K9L, N-BK7, UV Fused Silica, Sapphire, Custom | ||
| Size | Plate:mm 51x15x0.5 56x15x0.5 68x15x0.5 68x12x1 68x14x1 68x15x1 |
Cube:mm 40x8x8 40x30x8 40x34x8 40x38x8 40x20x10 40x40x10 50x38x10 50x40x10 50x50x10 60x25x15 |
Custom size and shape available. |
| Size tolerance | ±0.1mm | ||
| Surface quality | 40-20 Scratch-Dig | ||
| Cut-on wavelength | 400nm 430nm 480nm 530nm 560nm 580nm 640nm 690nm Custom wavelength |
||
| Cut-on tolerance | <±5nm | ||
| Application wavelength range | 200nm – 1200nm | ||
| Transmission | >95% | ||
| Reflection | >99% | ||
| Clear Aperture | 100% | ||
| Optical material | H-K9L, N-BK7, UV Fused Silica, Sapphire, Custom |
| Size (mm) | Custom size and shape available 10x10x2 15x13x2 17x15x3 17x17x3 15x30x2 13x13x60 14-40x87.5x14 12x23x59.5 10x15x80 10x10-12x15-80 |
| Size tolerance | ±0.1mm |
| Surface quality | 40-20 Scratch-Dig |
| Surface flatness | < 1/4λ @ 632.8nm |
| AR coating | R<0.2@808nm |
| Clear Aperture | 90% |
