High-Power Laser PBS
(Polarizing Cube Beamsplitters)
Optimized for higher-power lasers
Extinction Ratio Tp:Ts>2000:1
High Damage Threshold > 10J/cm²
Features
Durability, Reliability
Super-smooth polishing
Adhesive-free, optical contact
Minimum absorption and scattering losses
In-house OEM and custom manufacturing solutions
Applications
High Energy Nd:YAG Laser … etc.
Ask us for more specific applications and markets which are using the specialized PBS.
If you are looking for PBS used in Display, HD Imaging, Medical, Analytical and other application, please contact us for detail information.
If you are looking for high power Thin Film Plate Polarizers, please contact us for details of 10000:1 extinction ratio.
| Optical material | UV Fused Silica, etc. |
| Cube size | 4mm to 80mm 10mm, 12.7mm, 20mm, 25.4mm, 30mm, etc. |
| Surface quality | 10-5 Scratch-Dig |
| Surface flatness | < 1/4λ @ 632.8nm |
| Beam deviation | <3 arc min |

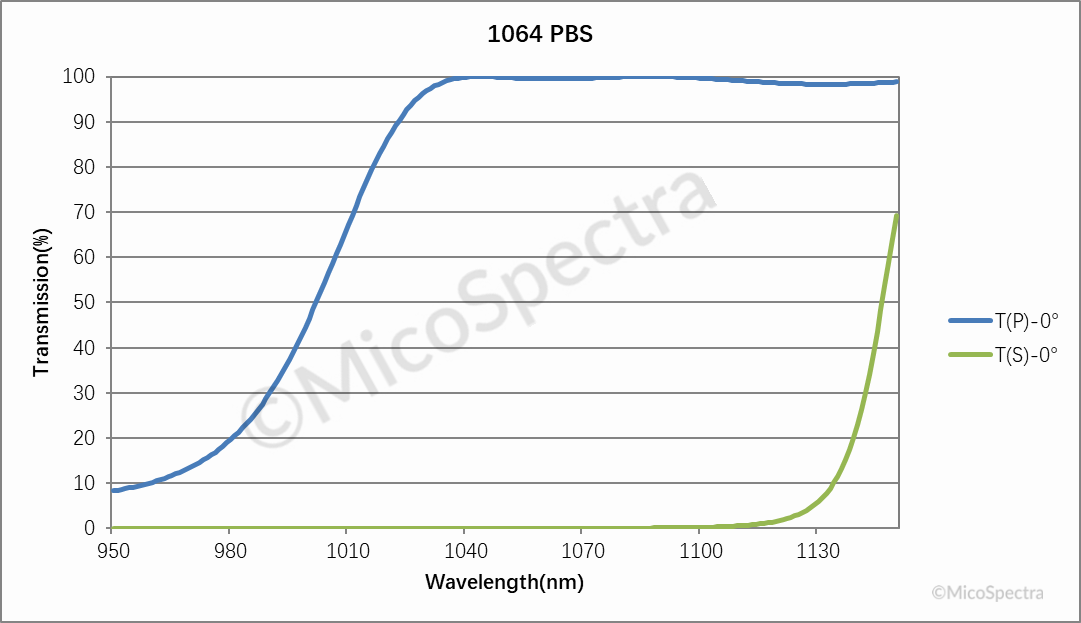

| Wavelength | 1064nm |
| Extinction ratio | Tp:Ts>2000:1 |
| Transmission | Tp>95%, Rs>99.5% |
| AR coating | R<0.25% @ 0° AOI |
| Clear Aperture | >90% of central dimension |
| Damage Threshold | 10 J/cm2 with 10 nsec pulses |

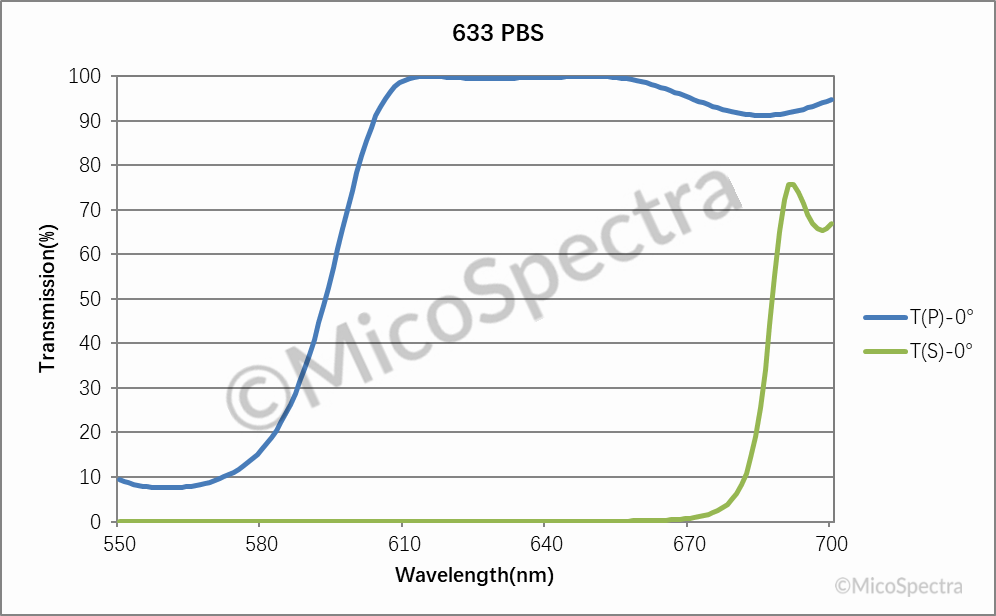

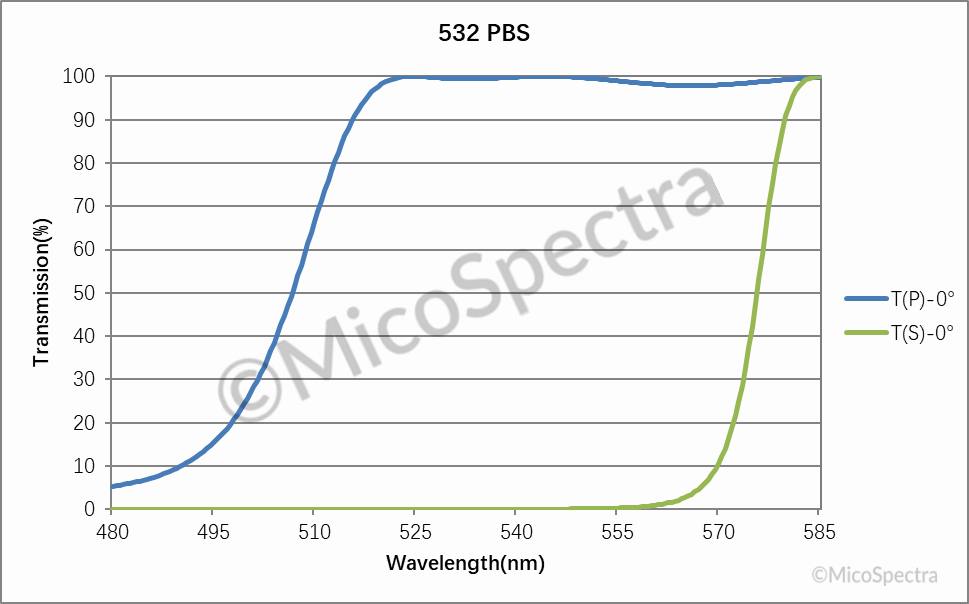

| Optional wavelength* | UV 266nm, 355nm, 405nm, custom Laser line 532nm, 633nm, 780nm, 830nm, 980nm, 1064nm, 1310nm, 1550nm, custom Broadband 420-680nm, 620-1000nm, 900-1300nm, 1200-1600nm, custom |
| Optional extinction ratio* | Tp:Ts>200:1 Tp:Ts>500:1 Tp:Ts>1000:1 Tp:Ts>2000:1 Tp:Ts>5000:1 |
*For the optional needs, please contact us for details.
