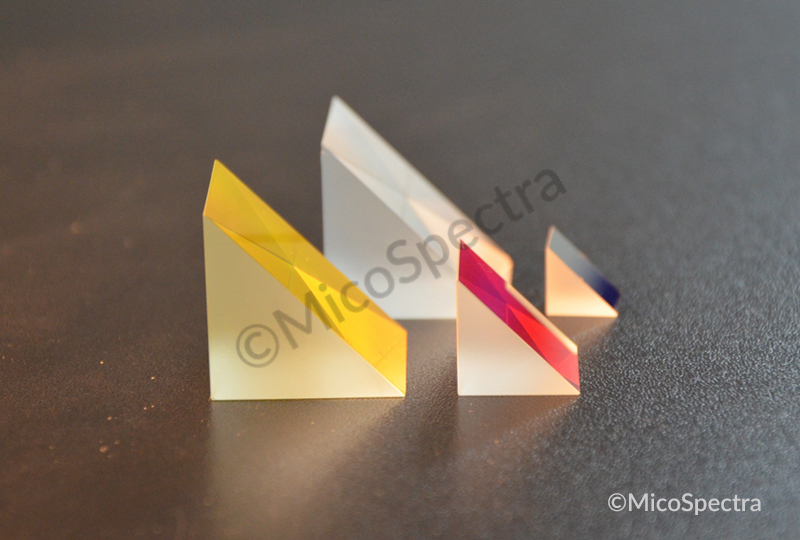

Right Angle Prisms
Features
Super-smooth polishing
Angles accuracy to < 2 arcsec
Surface quality to 10-5
Surface flatness to < 1/20λ
In-house prototype, OEM and custom solutions
Applications
Deviate beam … etc.
Please contact us for more specific applications and markets.
We offer custom prisms of customized shapes, configurations, specifications and coatings, please contact us for more information.
| Optical material | N-BK7, UV Fused Silica, Custom |
| Size | 4mm to 80mm 10mm, 12.7mm, 15mm, 20mm, 25.4mm, 30mm, 50mm, etc. |
| Surface quality | 20-10 Scratch-Dig |
| Surface flatness | < 1/4λ @ 632.8nm |
| Angles accuracy | <1 arc min |
| Coating | AR, HR, Custom coatings |
| Clear Aperture | >90% of central dimension |
